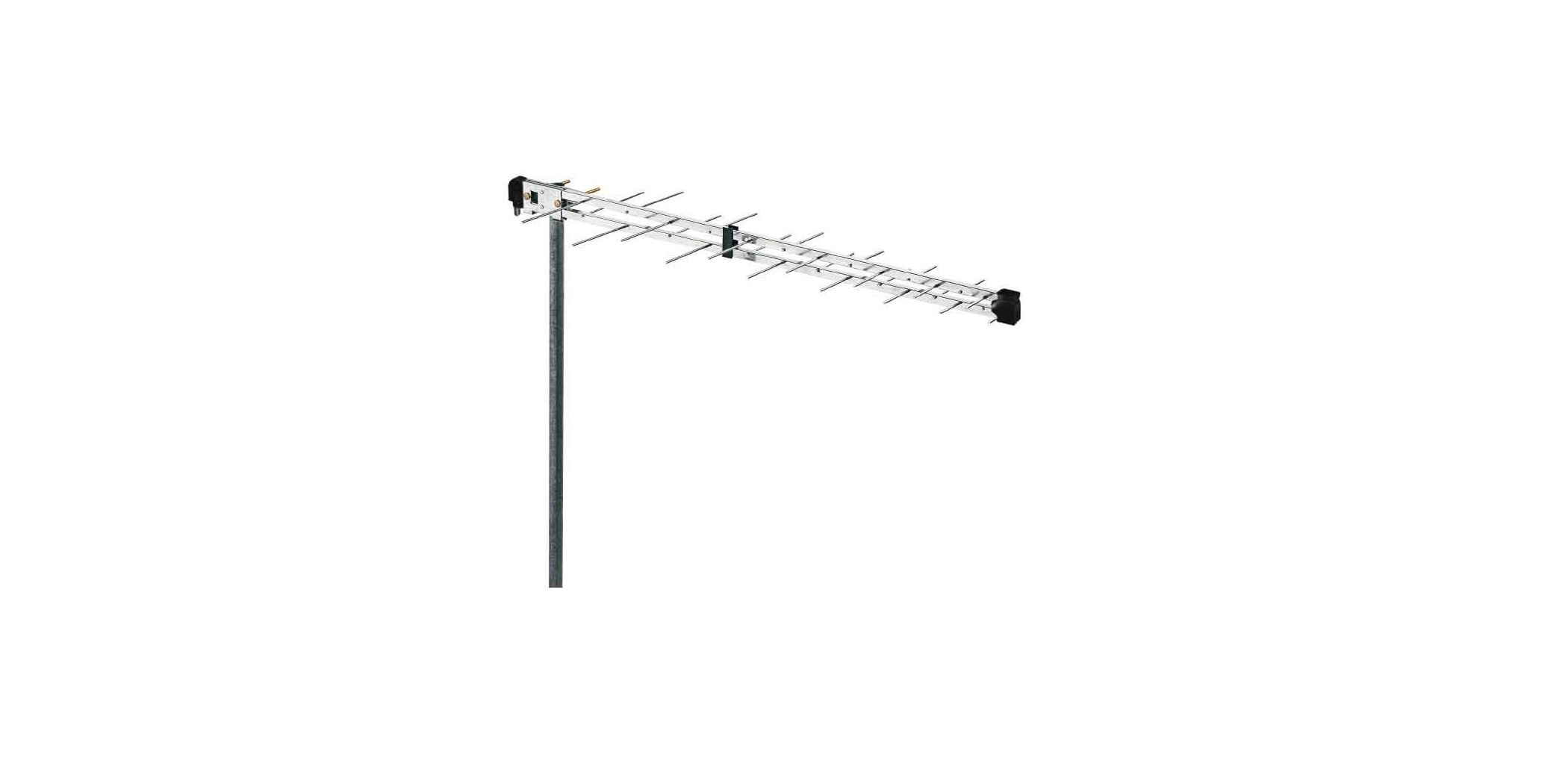

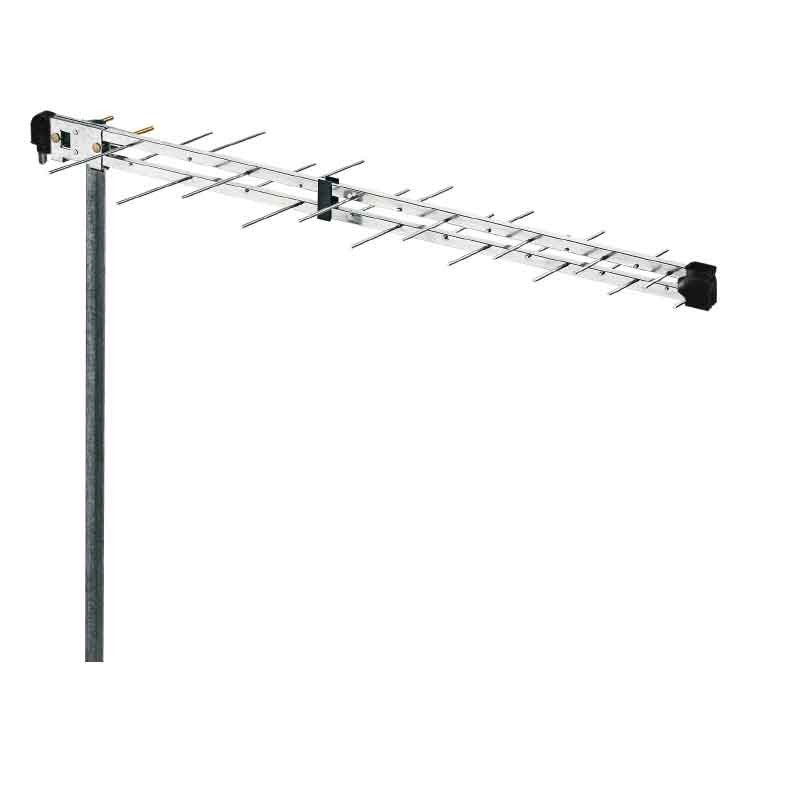

Fracarro LP45F UHF Antenna

Reference: 12030006 mail

  • On sale!
Fracarro LP45F UHF Antenna
  • Fracarro LP45F UHF Antenna

Product Features


  • Periodic Log Antenna
  • 75 Ohm Impedance
  • Connector F
  • Gain: 10 dB
  • Bandwidth: 470 - 900 MHz
  • Maximum Mast Diameter: 60 mm

Indicative monthly instalment :

months @ Rs 133 /month*
Quantity
Not available for home delivery.

Get a notification on availibility by inserting your email.

Add to my wishlist

Congratulations!
Please note that this list has been automatically created
Product added to the list
Close
Log in

You need to be logged in order to add products to a list

Sorry!

Please contact the shop first to be allowed to create a list

Share this item
Share facebook
account_circleSend to a friend
Fracarro LP45F UHF Antenna

Fracarro LP45F UHF Antenna

  • Periodic Log Antenna
  • 75 Ohm Impedance
  • Connector F
  • Gain: 10 dB
  • Bandwidth: 470 - 900 MHz
  • Maximum Mast Diameter: 60 mm

I accept privacy policy rules

Description Specifications
keyboard_arrow_right keyboard_arrow_down Description
  • Pre-assembled periodic Log Antenna characterized by extreme ease of connection thanks to the connector placed near the pole connection
  • The care taken in the design is also reflected in the special connection of the dipole that ensures reliability of the contact over time
  • Thanks to the special pole connection it is possible to install the antenna both in vertical and horizontal polarization without adapters or other accessories. It is equipped with excellent mechanical fastening of the elements to the cradle, excellent mechanical resistance to rotation on the pole, good electrical performance
  • The F connector is protected by a connector cover with bayonet coupling. The geometry of the dipoles has been redesigned to obtain an excellent filtering for the interfering signals in the LTE band reserved for mobile telephony
  • Polarization both vertical and horizontal
  • LTE filtering obtained by redesigning the dipole geometry
  • Front-to-back ratio(> dB): 28
  • Wind load at 120km/h(Kg): 3
  • V.S.W.R(Voltage Standing Wave Ratio): 1.7
keyboard_arrow_right keyboard_arrow_down Product Details
Fracarro
12030006

Data sheet

Warranty
NIL
Length(cm)
99
Height (cm)
32
Weight (Kg)
1.33
Colour
Silver
