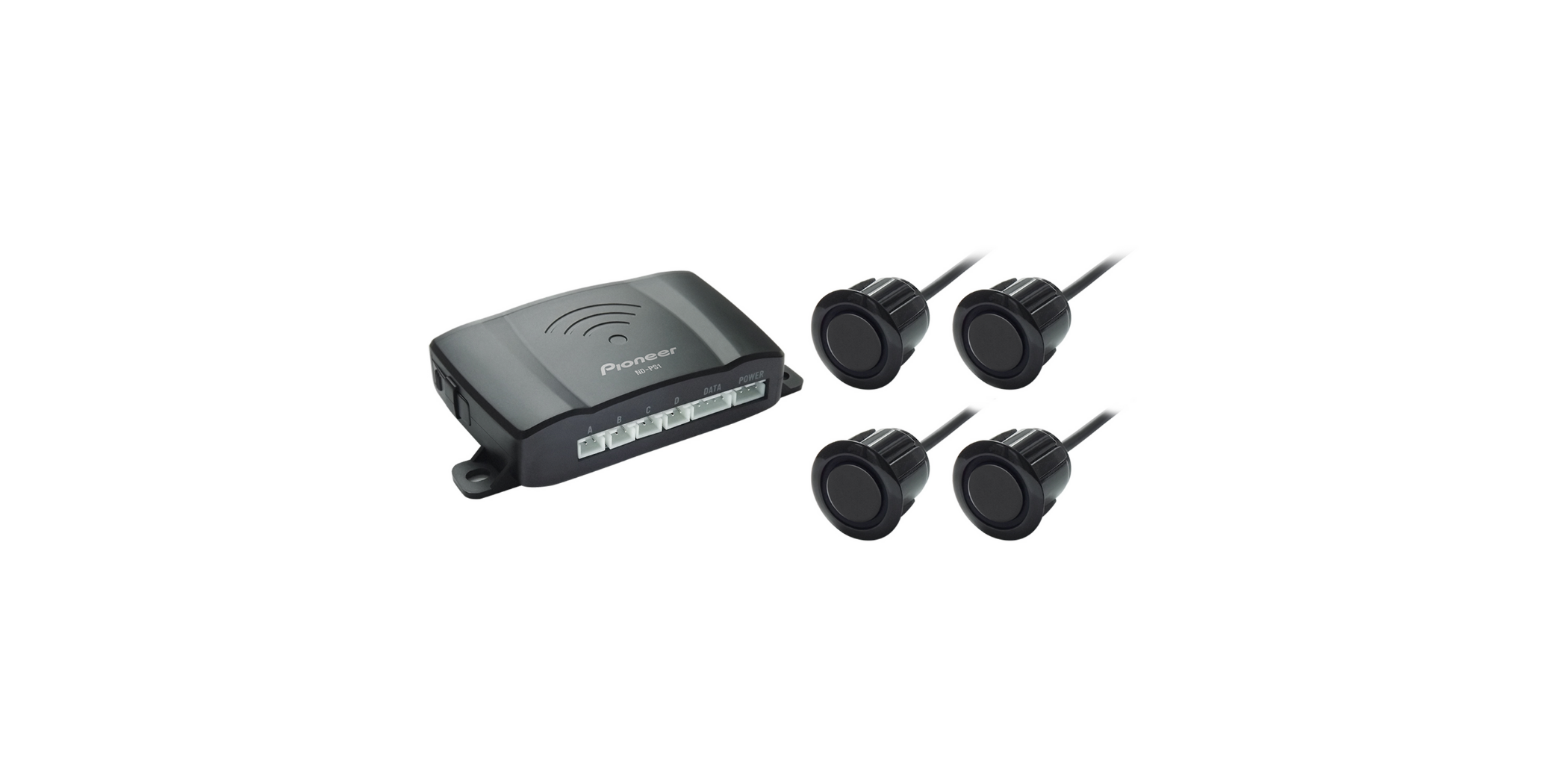

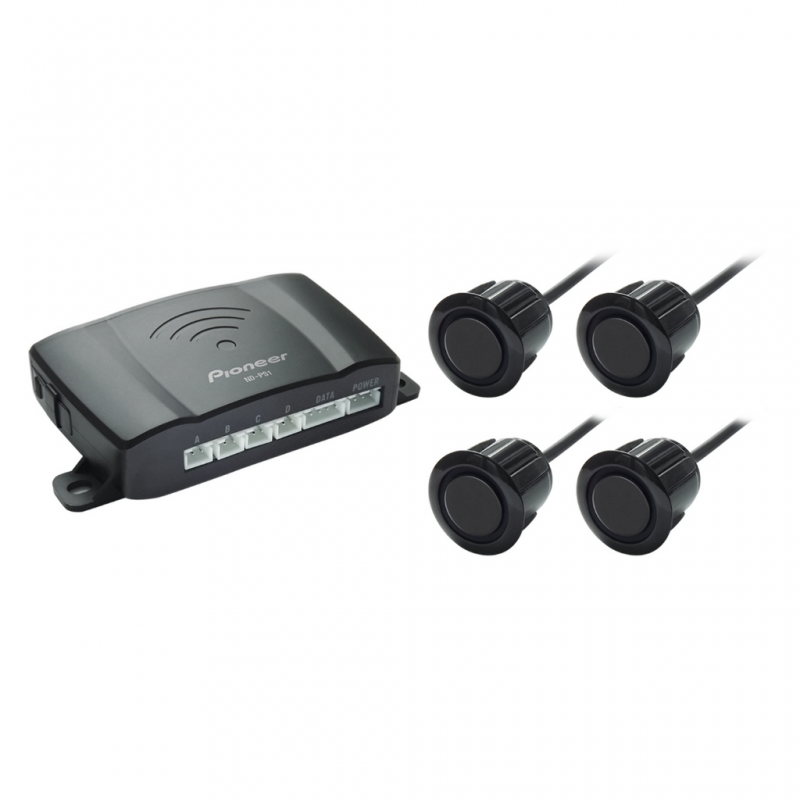

Control Box Specification:

• Nominal voltage: 14.4 V DC
• Operating voltage: 10.8 ~ 15.1 V DC
• Rated current: 10 ~ 30 mA at 14.4 V DC
• Detection Range: 0.3 m ~ 2.5 m
• Dimension (WxDxH): 10.53 x 5.6 x 2.18 cm
• Operation temperature range: -30°C ~ 80°C
• Weight: 50g

Cable Length:

• Power cable: 1 m
• Connection cable: 5 m

Sensor Specifications:

• Center frequency: 40 kHz
• Directivity X-axis: 70°
• Directivity Y-axis: 70°
• Maximum input voltage: 120 Vp-p (at 40 kHz)
• IP code: IP67
• Dimensions: φ 23.5 mm x 19.8 mm (exclude cable)
• Cable length: 2.5 m
