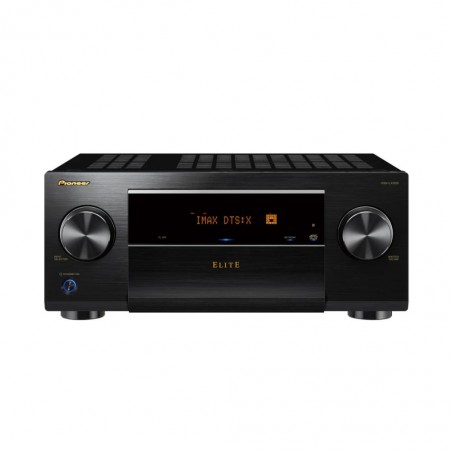

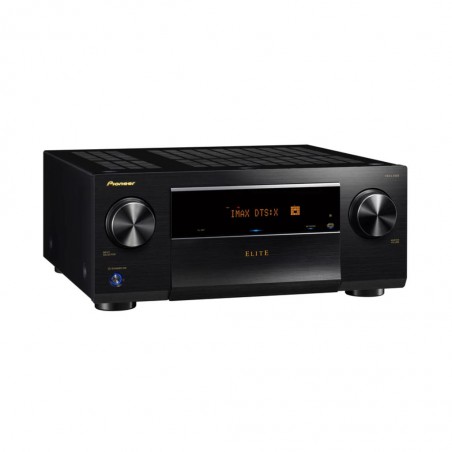

The VSX-LX505 creates the soundscape of IMAX® Enhanced and Dolby Atmos®/DTS:X ideally calibrated with Advanced MCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer without additional surround speakers. Enjoy spectacles from next-gen video/gaming standards with support for HDMI 2.1 with 8K, VRR, ALLM, QFT pass-through, or stream songs across the house with Multi Zone Music, SONOS system, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2. Don’t forget it also features Powered Zone 2/Zone 3 Audio, 11.2/5.6/2.8 MHz DSD playback with PCM conversion, 2 HDMI outputs and Roon Tested certification. Finally, it works with Alexa or OK Google for voice control.

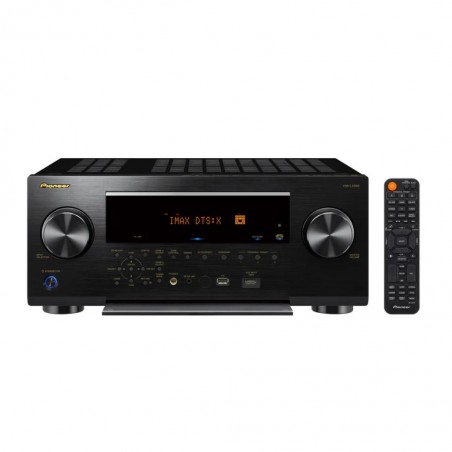

Front Terminals:

• HDMI 1 In
• USB 1 In for USB Drive
• MCACC/Dirac Live Setup MIC In
• Phones 1 Out

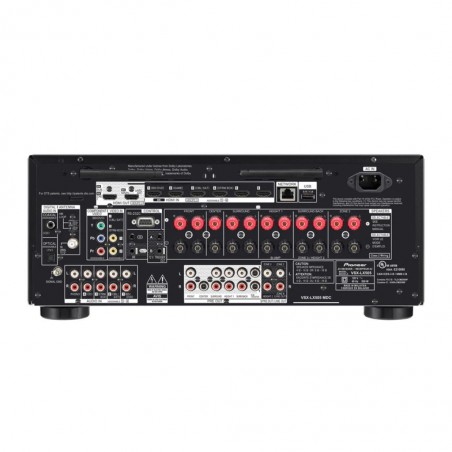

Rear Terminals:

• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB/ZONE 2)
• Ethernet 1 In > USB 1 In for USB Drive
• AV (Component) 1 In (Assignable)
• AV (Composite) 2 In (Assignable)
• Audio 1 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out
• ZONE 2 Pre/Line Out/ZONE B Line Out
• ZONE 3/HEIGHT 2 Pre/Line Out
• Speaker 11ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/ZONE 2/Bi-AMP, SURROUND BACK/ZONE 3/HEIGHT 2)
• IR 1 In/1 Out
• 12 V Trigger 2 Out
• RS-232C
• DAB/FM Antenna

Advanced MCACC Auto Room Tuning:

•  Auto Phase Control Plus
•  Subwoofer EQ
•  Multi-point Standing Wave Control

Other Features:

• Power Requirements: AC 220-240 V, 50/60 Hz
• Power Consumption/Standby: 850 W/0.1 W
• Dimensions (W x H x D): 43.5 x 18.5 x 38.6 cm
• Weight: 13 kg
